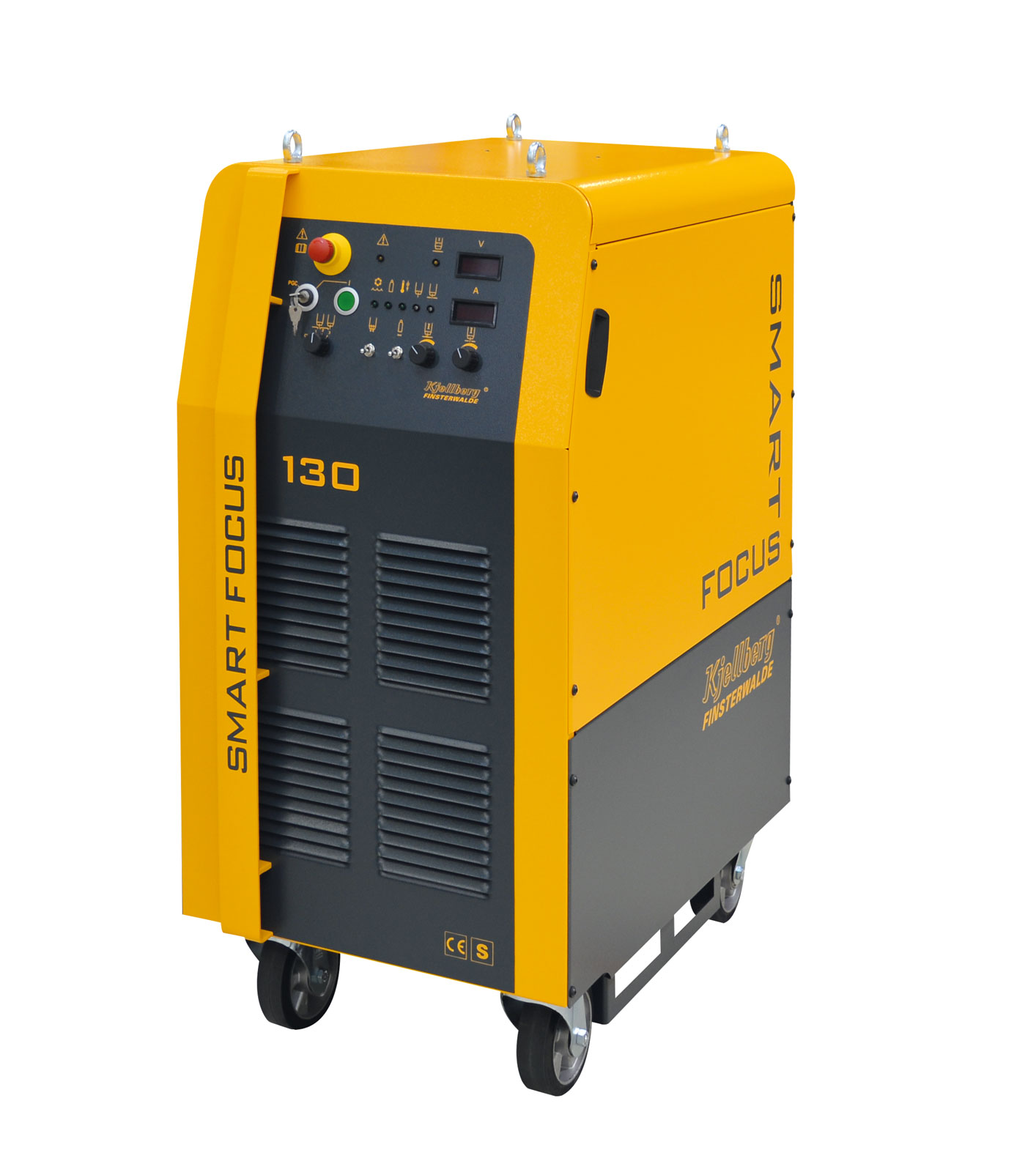

Smart Focus 130
| Feature | Details |
|---|---|
| Cutting Range | Covers 1 to 40 mm, with recommended range of 1–32 mm and piercing capacity up to 25 mm (Kjellberg, L2Service GmbH) |
| Output Power | 35–130 A cutting current, with marking capability of 10–50 A, and 100% duty cycle (Kjellberg, L2Service GmbH) |
| Precision Technologies | Equipped with Contour Cut, improved Contour Cut Speed, and Silent Cut (up to 15 dB(A) noise reduction at 60–160 A) (L2Service GmbH, Orbital Welding and Cutting) |
| Efficiency | Optimized gas control and torches reduce consumable wear, lower gas usage, and reduce cost per cutting meter (Kjellberg, Orbital Welding and Cutting) |
| Size & Weight | Compact and portable: 1,030 × 570 × 1,260 mm, weighing 266 kg (Kjellberg, L2Service GmbH) |

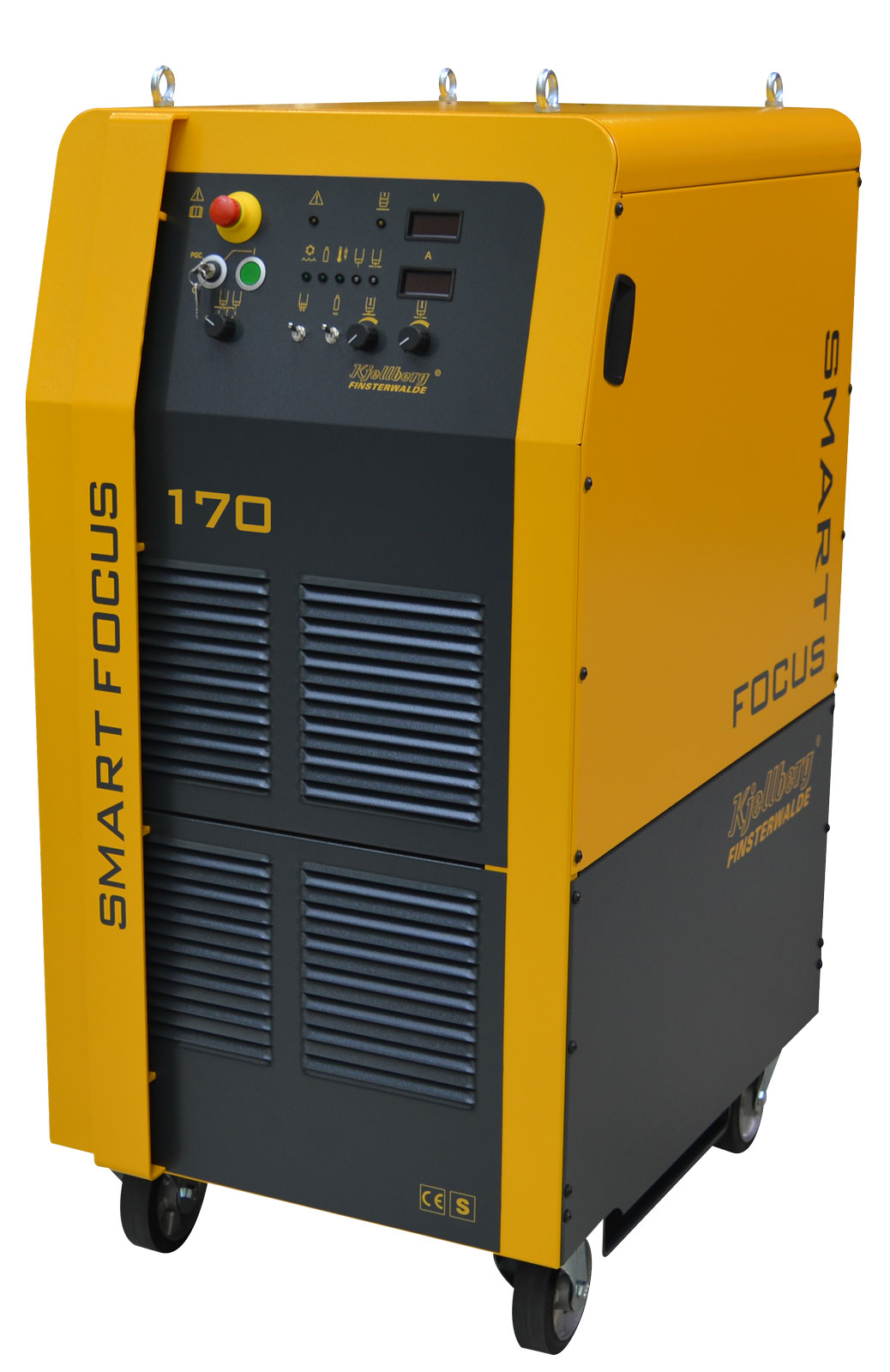

Smart Focus 170
| Feature | Details |
|---|---|
| Cutting Range | Precise cutting from 1 mm to 50 mm, with a recommended range of 1–35 mm; piercing up to 30 mm (Kjellberg) |
| Output Power | Cutting current: 35–170 A; Marking current: 10–50 A (Kjellberg) |
| Precision Technologies | Includes Contour Cut for accurate contours, Contour Cut Speed for faster cuts, and Silent Cut (reduces noise by ~15 dB(A)) (Kjellberg, spt.se) |
| Gas Optimization | Features optimized gas control and torches to protect consumables, reduce gas consumption, and lower cost per meter (Kjellberg) |
| Size & Weight | Compact dimensions: 1030 × 680 × 1450 mm; Weight: 388 kg; Uses PerCut 2000 torch (Kjellberg) |

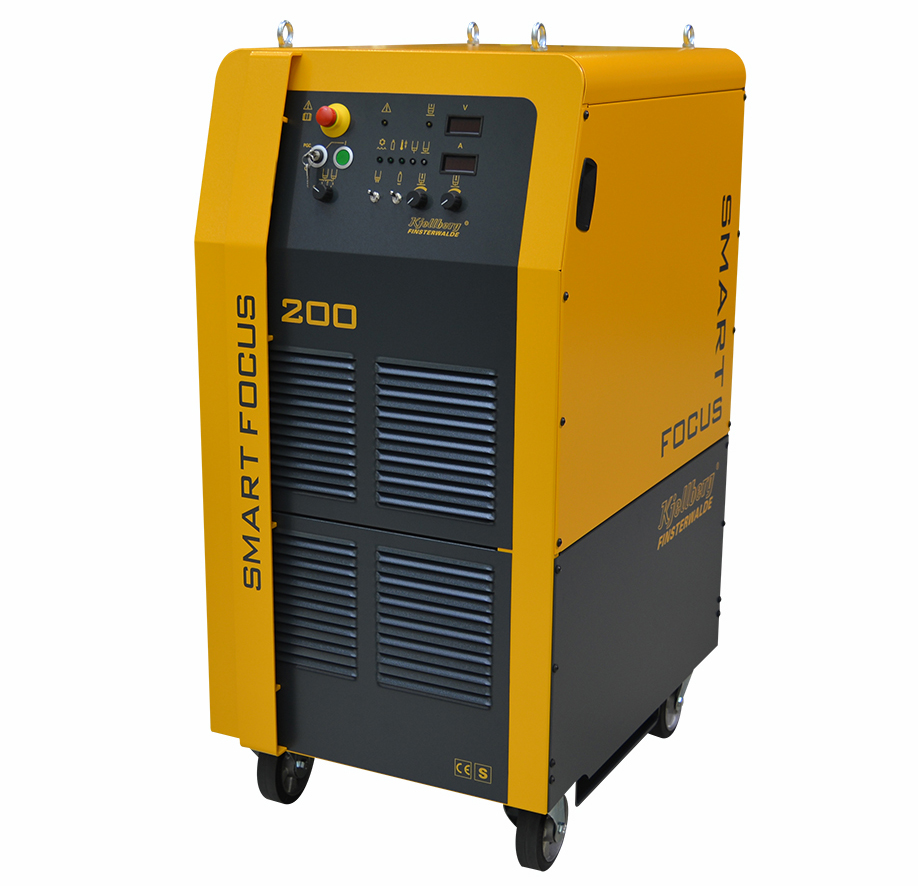

Smart Focus 200
| Feature | Details |
|---|---|
| Cutting Range | Precision cutting from 1–40 mm, max up to 60 mm; piercing up to 30 mm (Kjellberg, kjellbergcutting.com) |
| Output Power | Cutting current: 35–200 A; Marking current: 10–50 A (Kjellberg, kjellbergcutting.com) |
| Precision Technologies | Features Contour Cut for precise profiles and Silent Cut to reduce noise by up to 15 dB(A) (kjellbergcutting.com, Kjellberg) |
| Gas Compatibility | Supports O₂, Ar/H₂, N₂, Air for cutting; Ar and N₂ for piercing (Kjellberg) |
| Size & Weight | Compact dimensions: 1030 × 680 × 1450 mm, weight: 388 kg (Kjellberg, kjellbergcutting.com) |

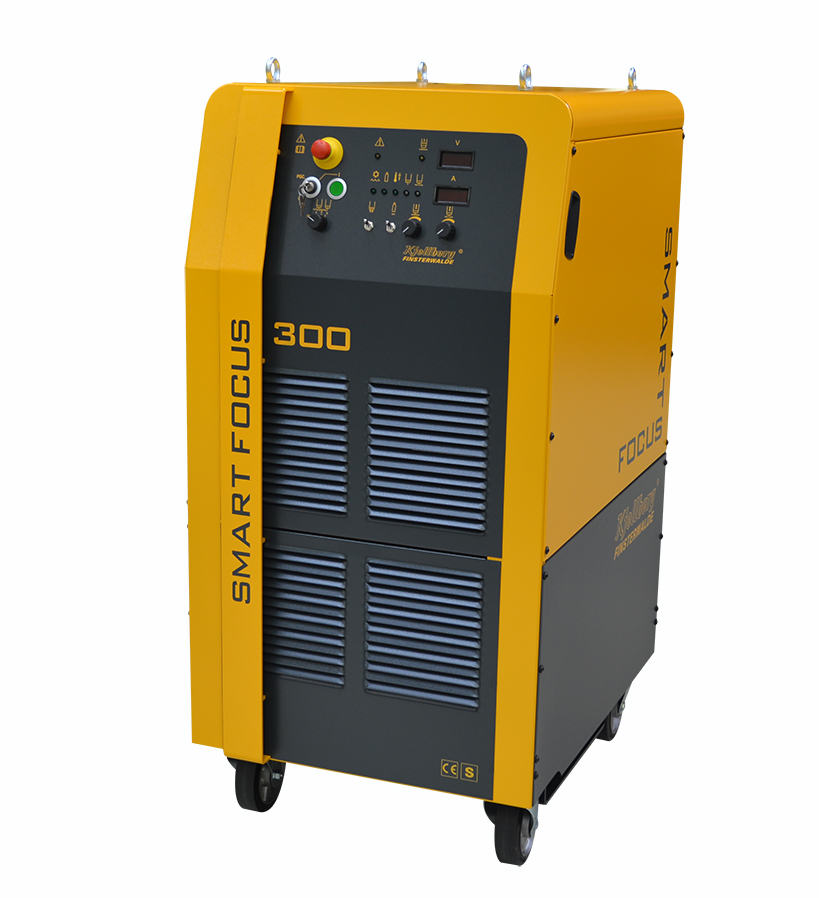

Smart Focus 300
| Feature | Details |
|---|---|
| Cutting Range | Precision cutting from 1 to 60 mm, with a maximum capability of 80 mm, and piercing up to 40 mm (Kjellberg, EGP Sales) |
| Output Power | Cutting current range: 35–300 A; Marking current: 10–50 A (Kjellberg, Kjellberg Cutting) |
| Precision Technologies | Equipped with Contour Cut for intricate profiles and Silent Cut for noise reduction (~15 dB(A) at 60–160 A) (Kjellberg Cutting, Kjellberg) |
| Gas Compatibility | Supports O₂, Ar/H₂, N₂, and Air for cutting; Ar & N₂ for marking/piercing (Kjellberg, EGP Sales) |
| Size & Weight | Compact dimensions: 1030 × 680 × 1450 mm; Weight: 488 kg (Kjellberg, EGP Sales) |

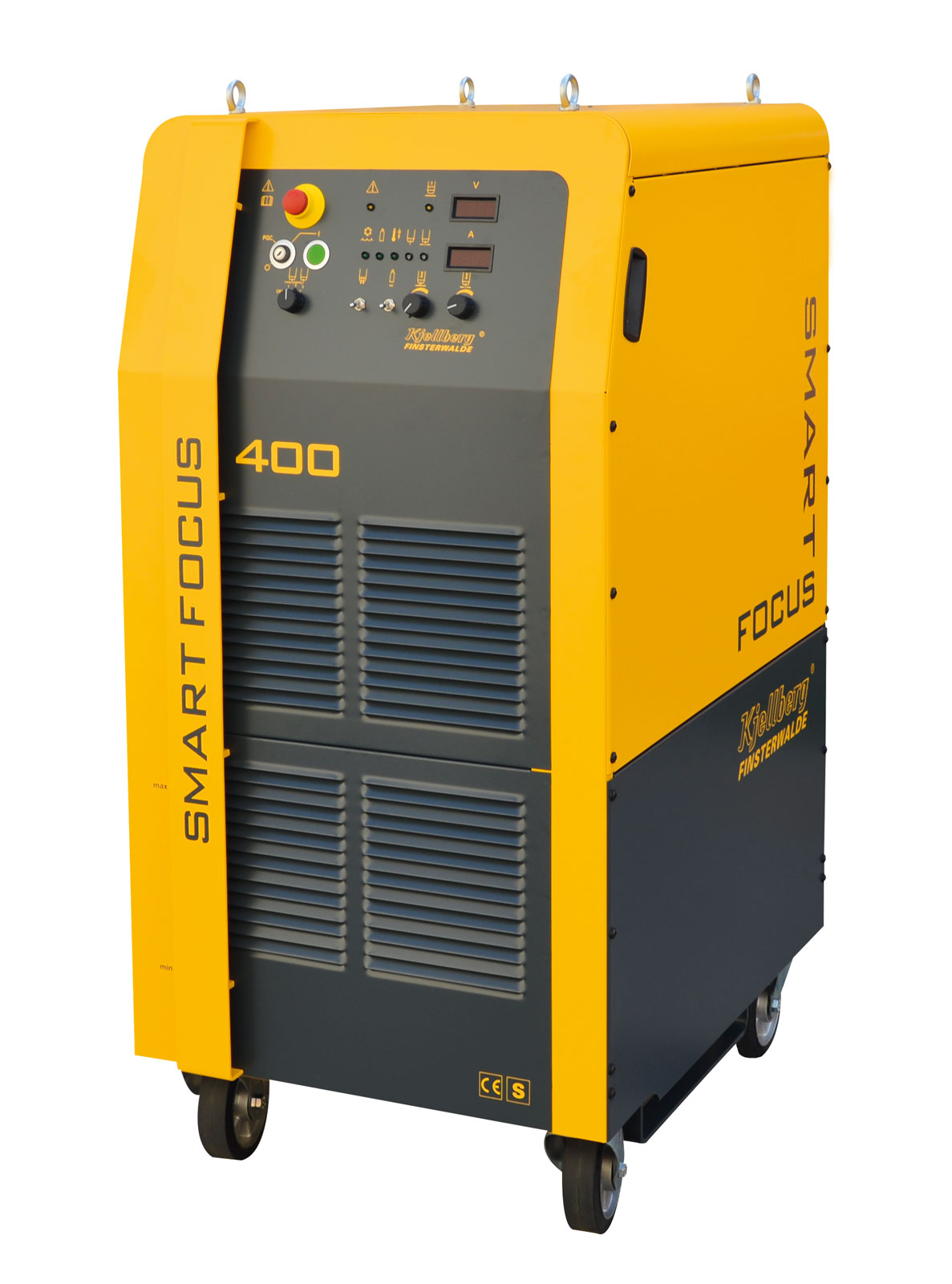

Smart Focus 400
| Feature | Details |
|---|---|
| Cutting Range | Precision cutting from 1–70 mm, with a maximum capacity of 100 mm; piercing up to 50 mm (Kjellberg, Vanad) |
| Output Power | Adjustable cutting current between 35–400 A, marking current between 10–50 A; operates at 100% duty cycle (Kjellberg) |
| Precision Technologies | Includes Contour Cut for fine detail and Silent Cut technology for up to 15 dB(A) less noise at 60–160 A (Kjellberg Cutting, Kjellberg) |
| Gas Compatibility | Supports multiple plasma gases—O₂, Ar/H₂, N₂, air—and uses Ar or N₂ for piercing (Kjellberg, Vanad) |
| Physical Specs | Compact footprint (L × W × H): 1030 × 680 × 1450 mm; weight: 563 kg; uses PerCut 4000 torch (Kjellberg, Kjellberg Cutting) |
